New Eichler Atrium Sliding Door

2015-03-22 10.51.35

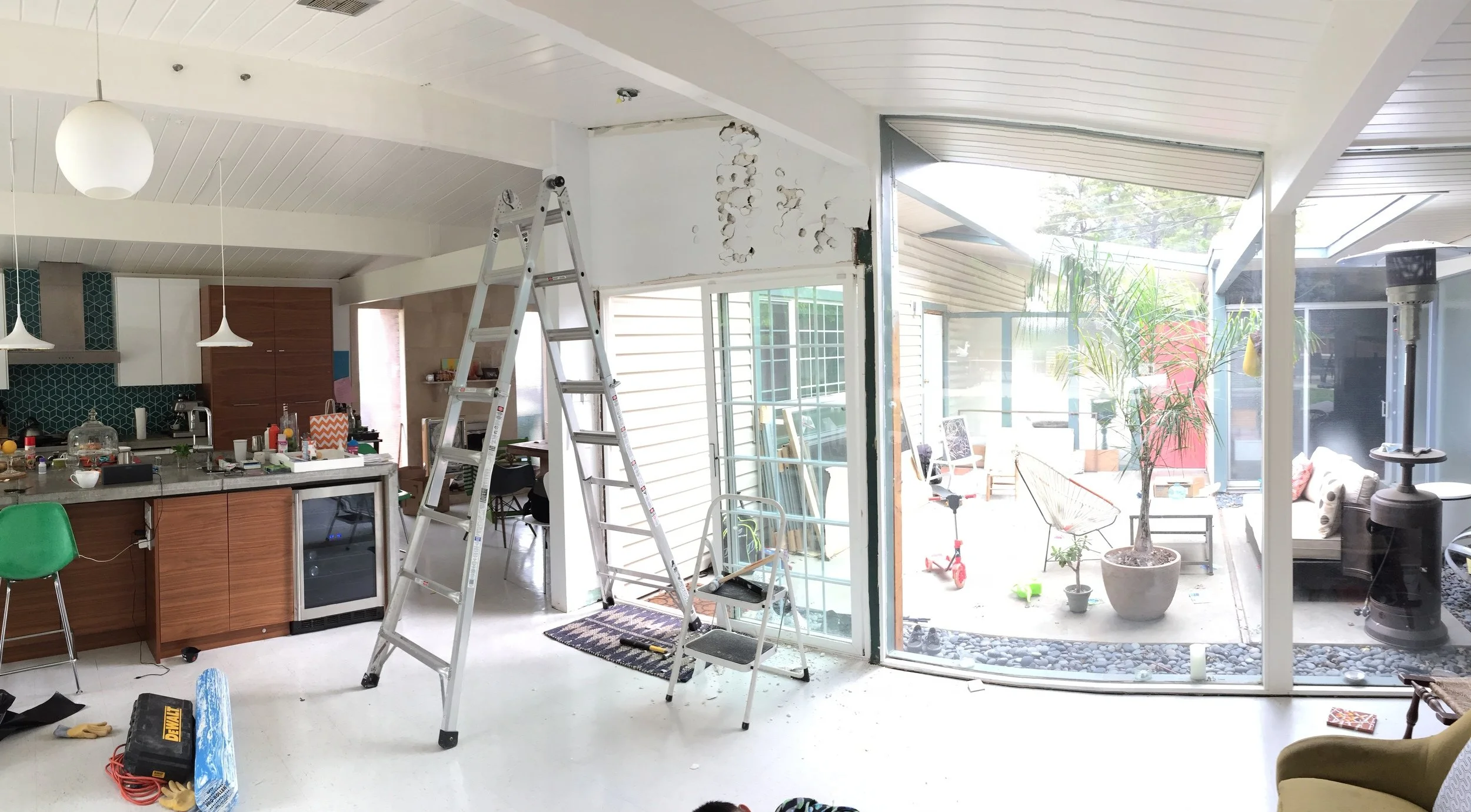

The vinyl door with the fancy faux muntins had to go - despite the fact that it was a perfectly good door. Our dear Craigslist helped to upcycle the door to a new home. We began by breaking down the soon-to-be transom section to make sure there wasn't still glass up there and to take a peek at the framing, but wanted to remove the door first.

2015-03-22 12.04.34

2015-03-22 13.29.17 HDR

After the door removed, we continued with the area above the door.

2015-03-22 18.36.49

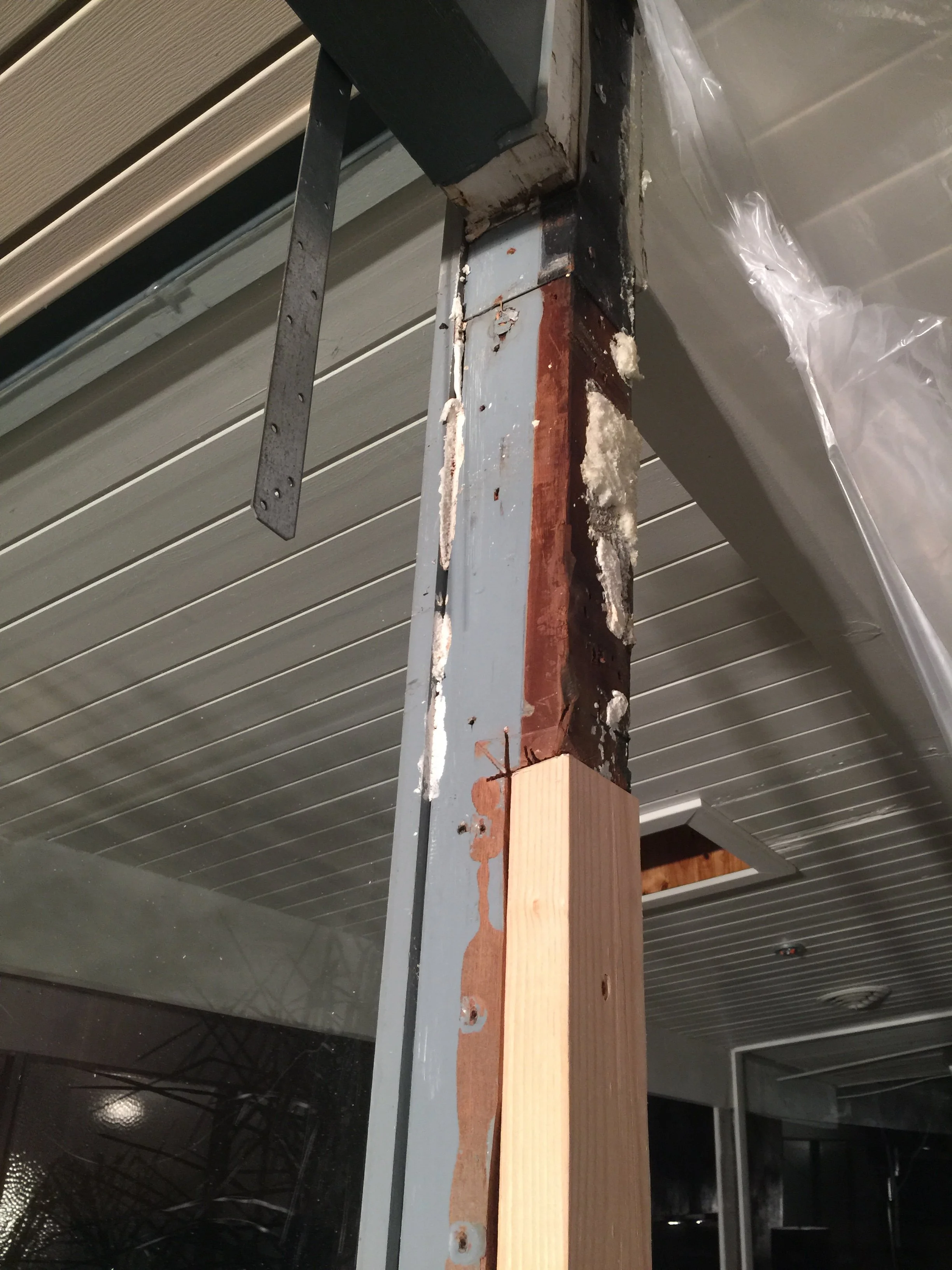

We had to prepare the sill and also reinforce the post, which had been terribly sawzalled in half! The previous owner wanted to use an off-the-shelf replacement door from The Home Depot, and needed about 3 inches, so they cut 2 inches from one post, and an inch from the other - ARGH!

2015-03-24 23.31.16

2015-03-24 23.31.20

2015-03-24 23.31.06

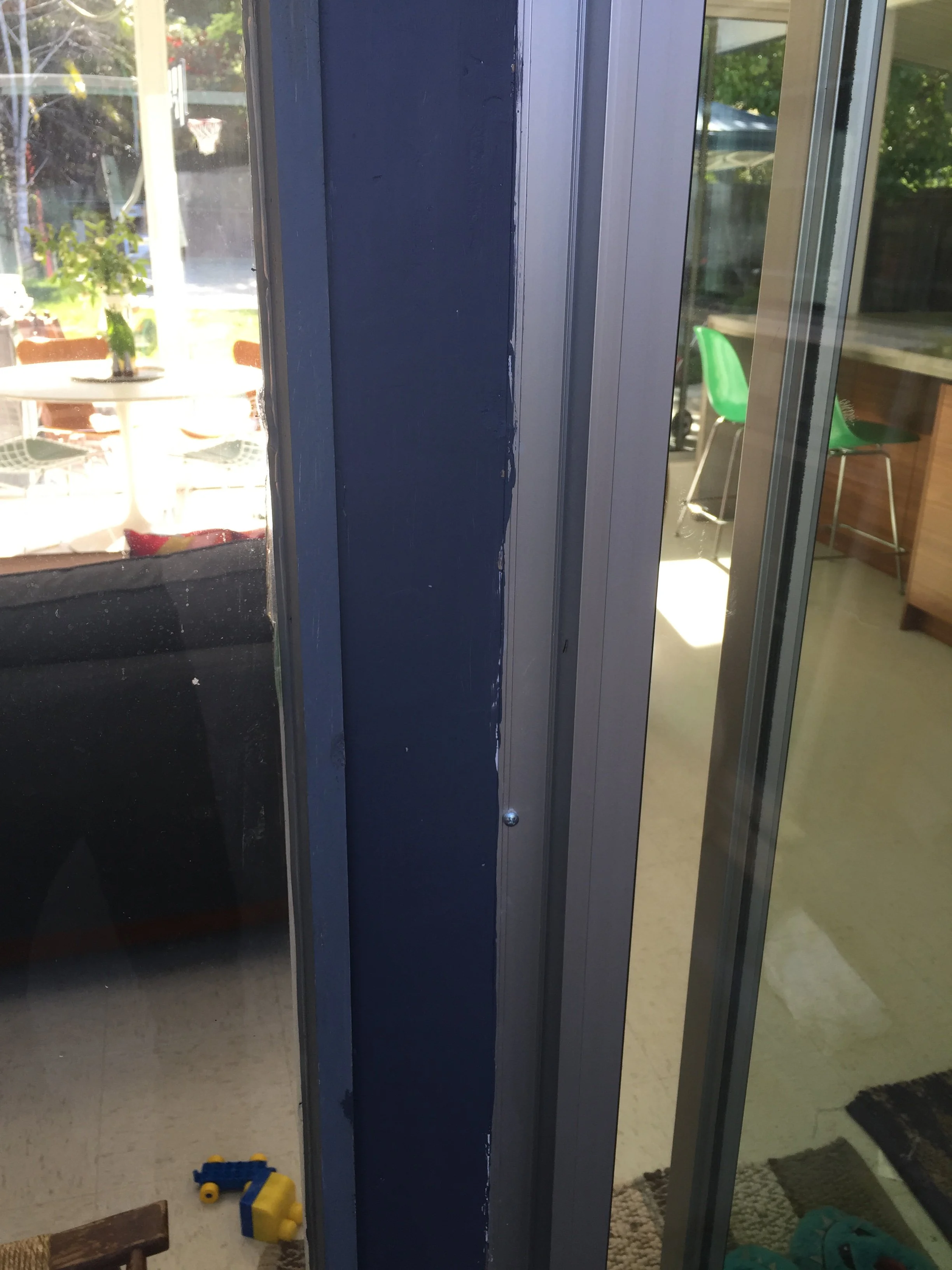

We filled in with wood filler and a finishing coat of higher end spackle then painted using an old can of grey paint laying around (final colors for another day).

2015-03-24 23.30.55

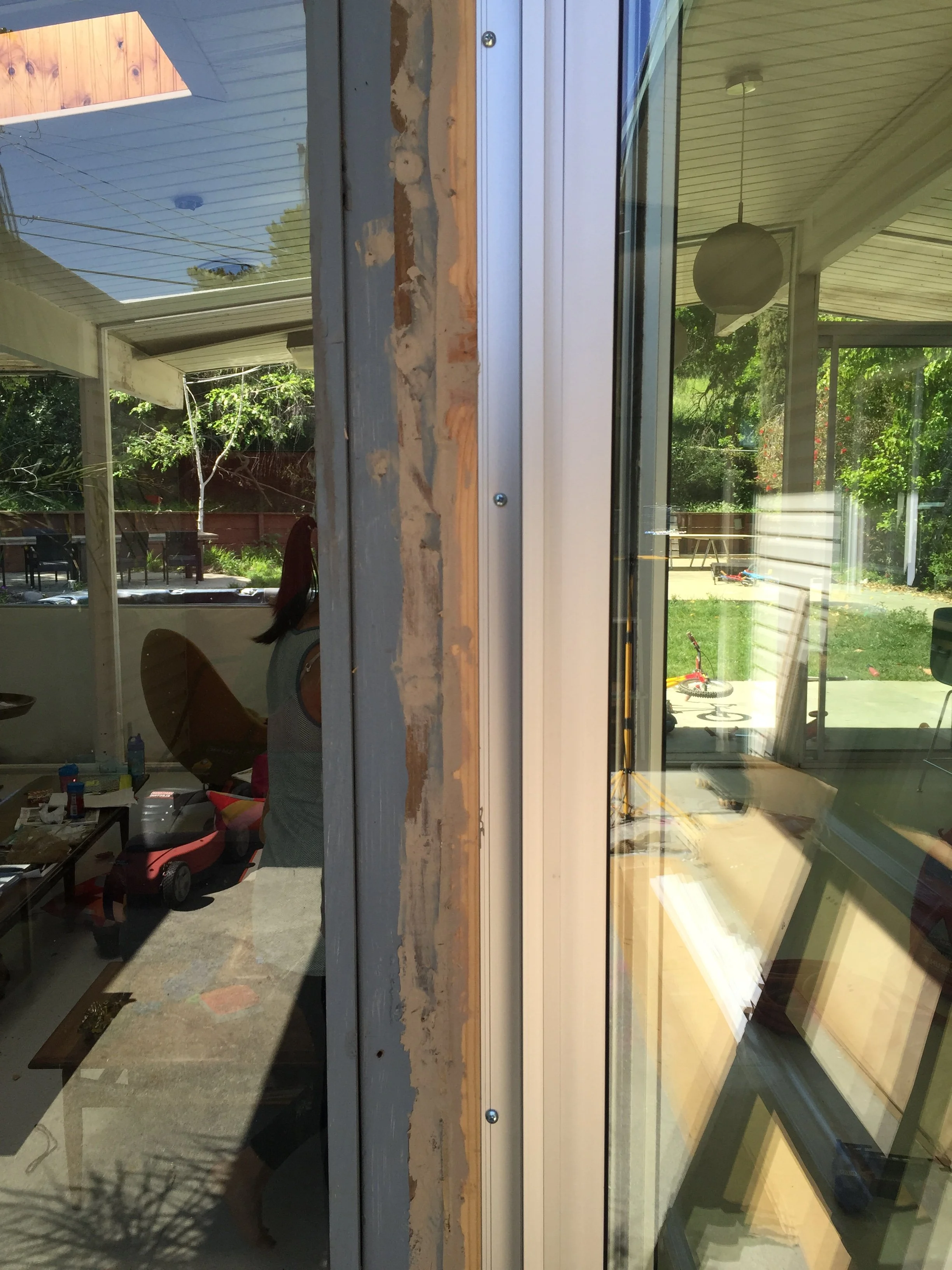

2015-04-04 12.43.12

2015-04-10 16.52.04

Milgard Sliding Door Frame Assembly

2015-03-22 18.57.39

We installed the door frame, panels, and hardware.

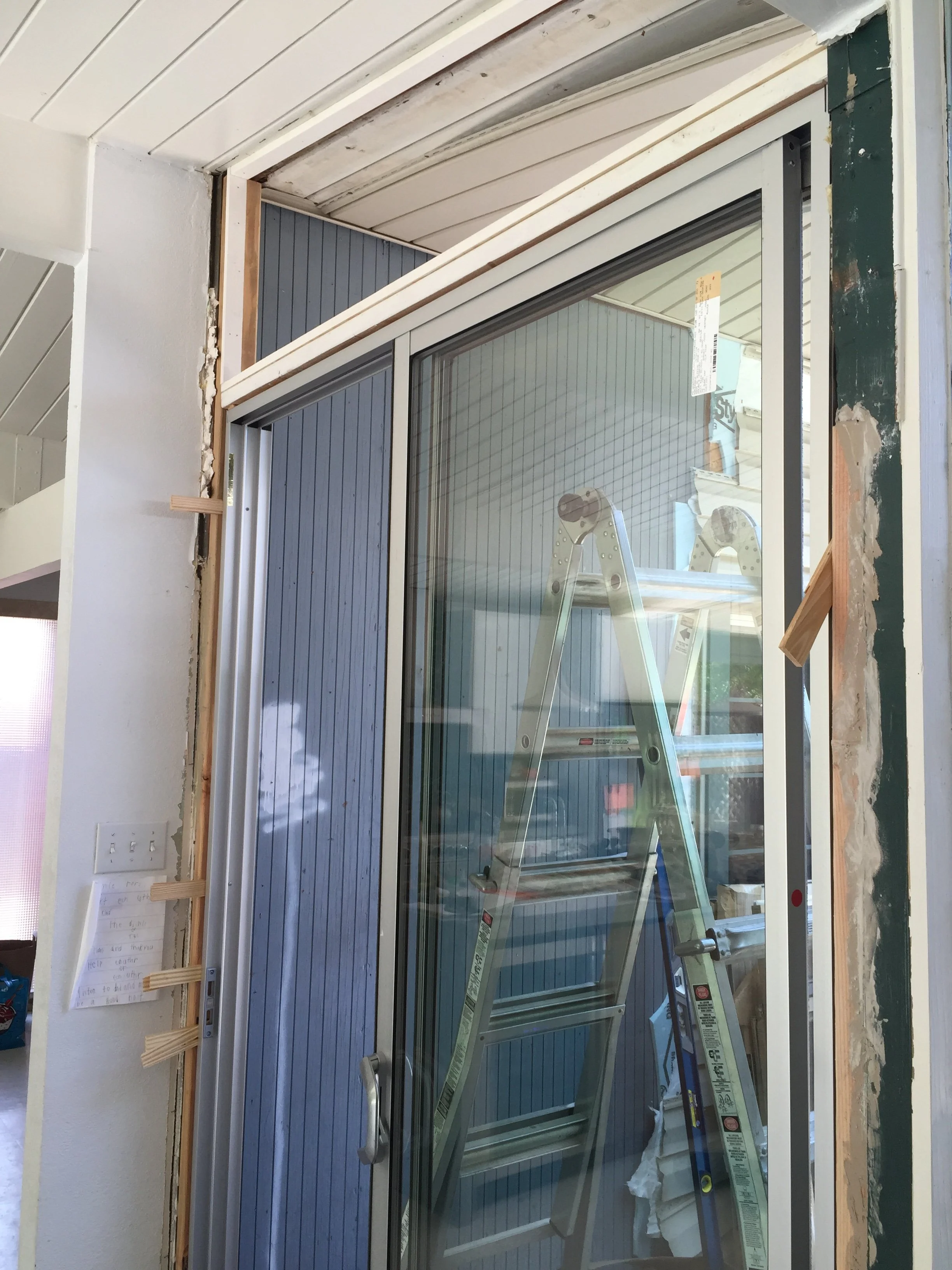

Next we trimmed out the transom, got a custom piece of glass from Diablo Glass.

2015-04-04 14.46.33

2015-04-05 06.50.43

[Final shot to be added]
